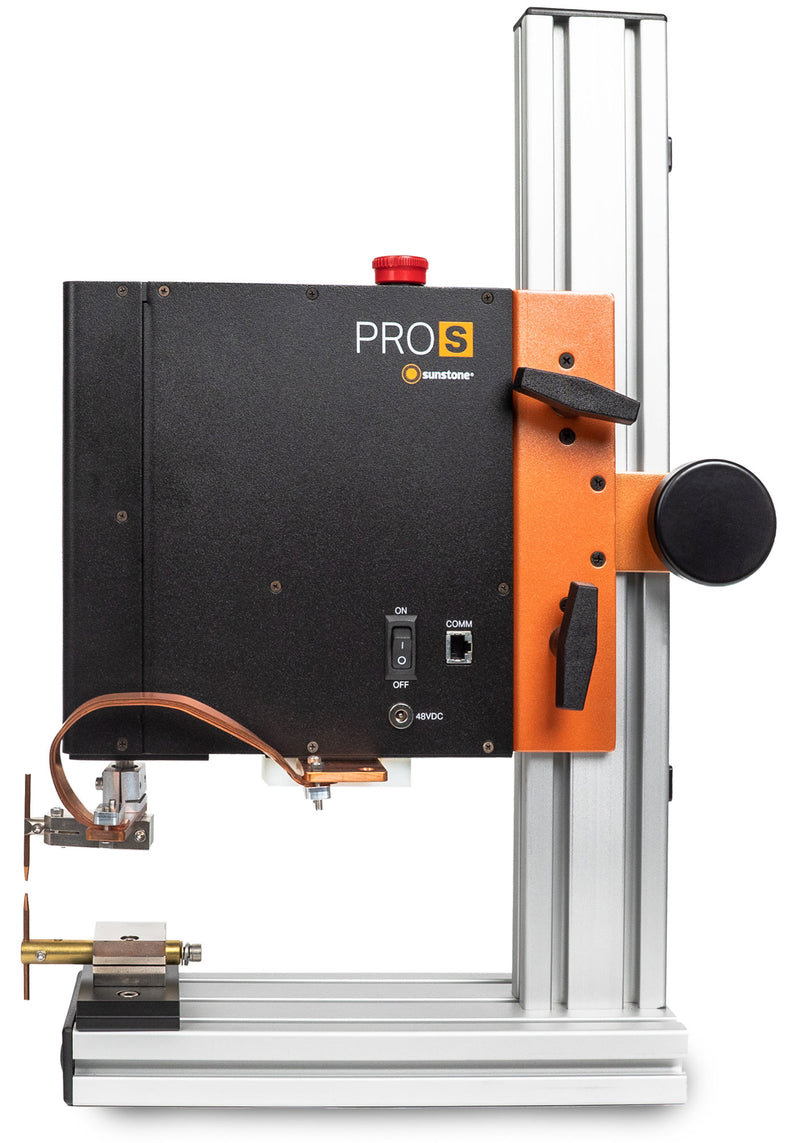

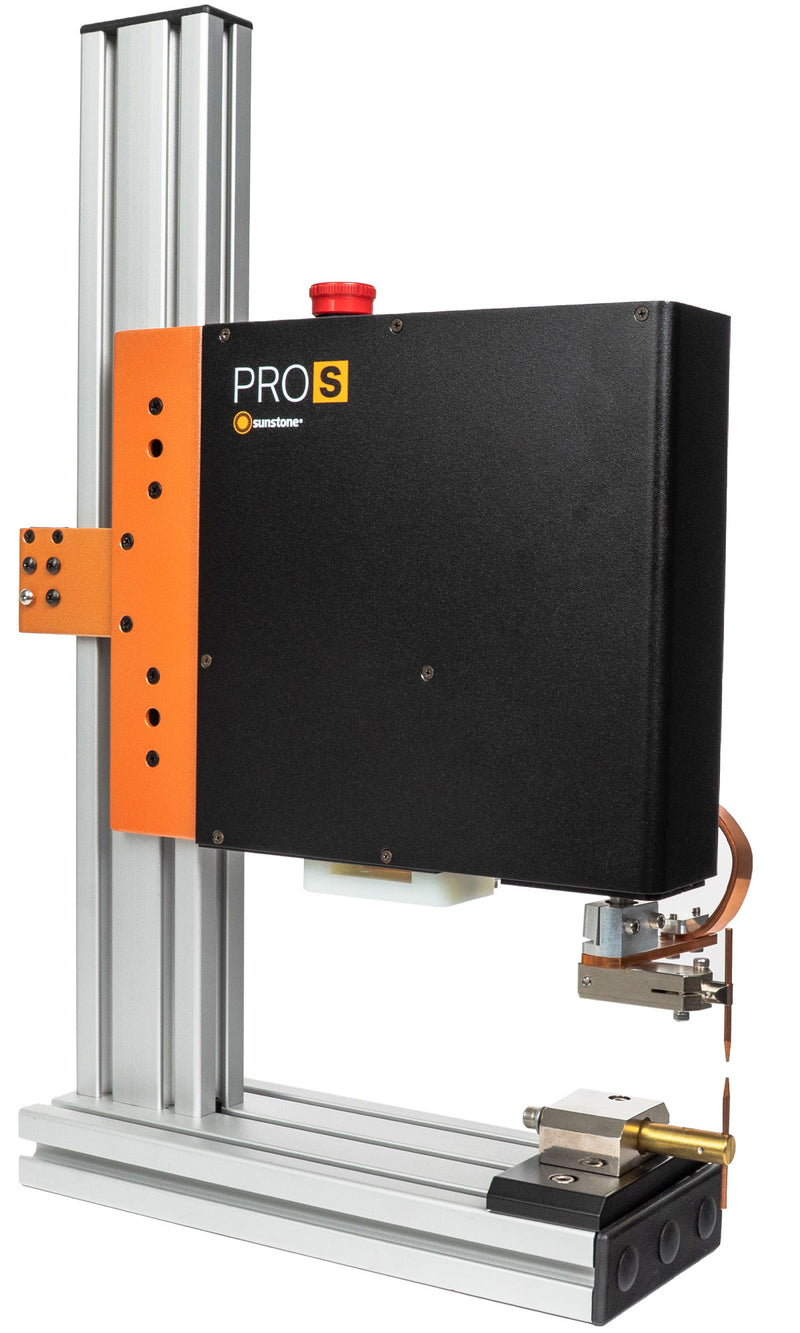

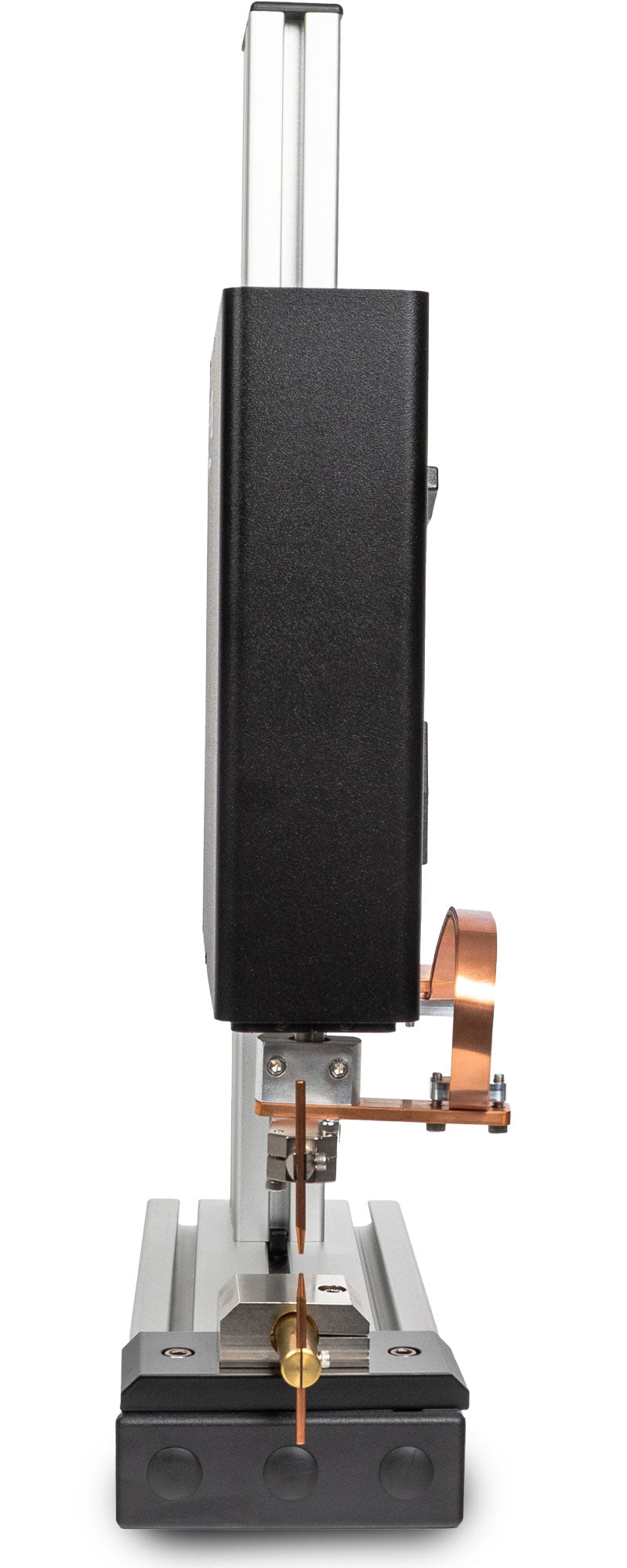

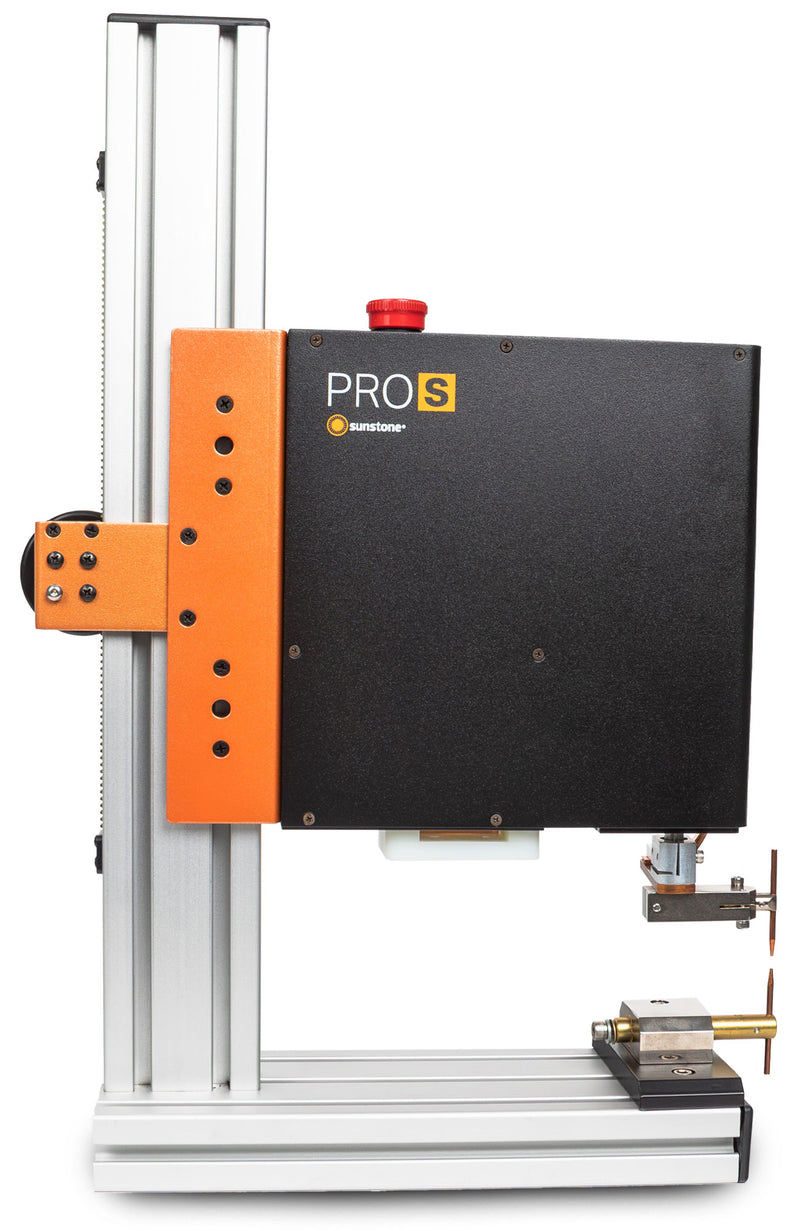

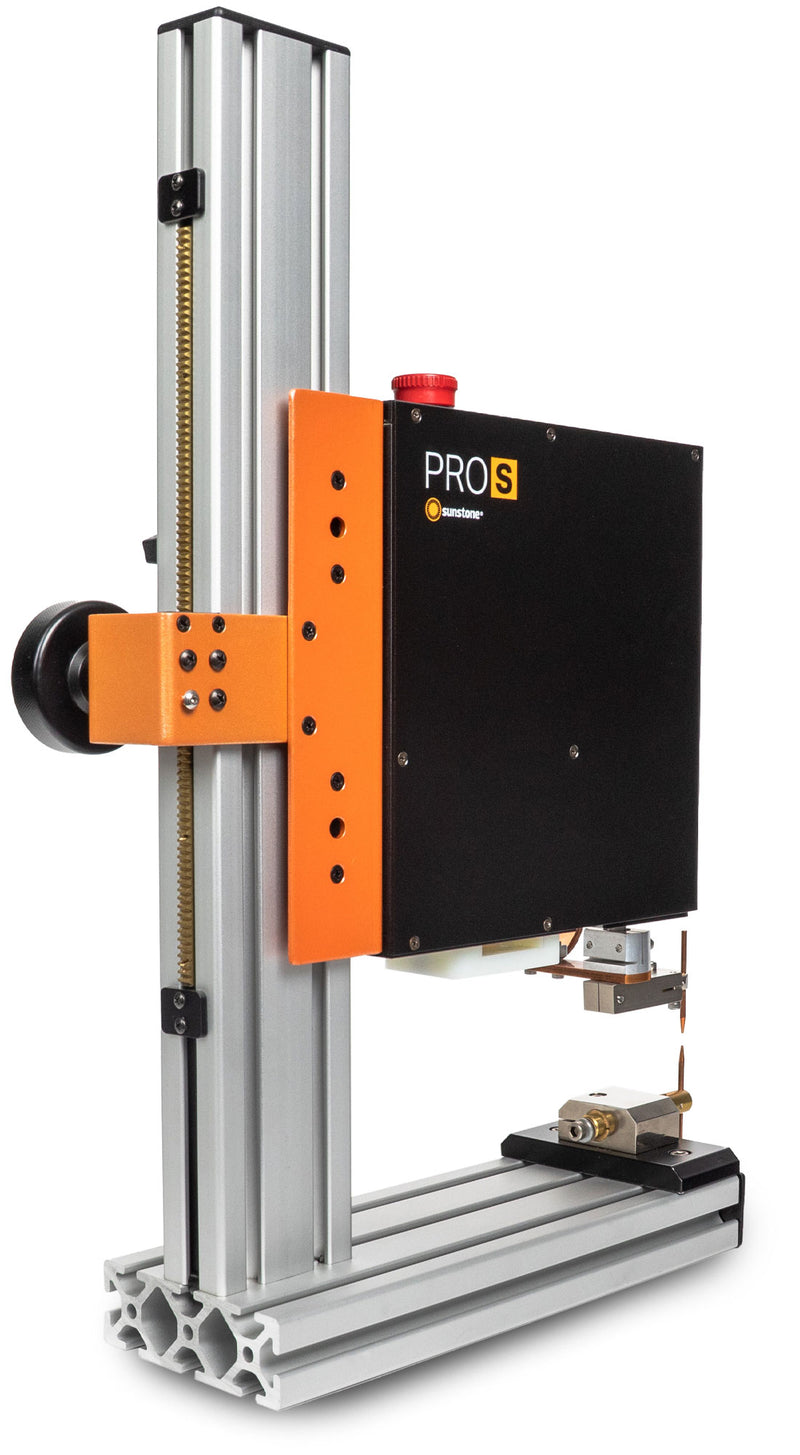

Orange and black PRO S Servo Weld Head for opposed micro welding on a white background

Sunstone Pro-S Servo Weld Head with Built-In Displacement and Force Monitoring

UGC 303180
$9,000.00 - $9,000.00
$9,000.00
$9,000.00 - $9,000.00
$9,000.00
Disponibilité:
en stock, prêt à être expédié

Besoin d'une formation sur ce produit ? Réservez maintenant sur ce lien ici.
LEARN MORE

Abonnement au plan de protection Sunstone Circle

La meilleure protection que votre investissement ait jamais connue ! En savoir plus >

The Sunstone Pro-S is a servo-powered weld head that provides high-end features at a mid-range price. Available in an opposed configuration, the Pro-S provides quality welding results for automated, high-production environments or as a tabletop solution for smaller shops. Built-in monitoring comes standard with the Pro-S. Any manufacturer that utilizes resistance welding in their manufacturing process will see immediate efficiency gains with the Pro-S.

Key Features

  • Force Feedback Monitoring
  • Displacement Feedback
  • Pull Positional Monitoring
  • Faster Operational Speed
  • Increased Precision vs Pneumatic-Powered Weld Heads
  • Adjustable Weld Head Force between 1.8 to 29.2 lbs (8 to 130 N)
  • Positional displacement accuracy of 60 µm
  • 2” stroke (50 mm)
  • Automation-Ready
  • Rotary Knob Height Adjustment
  • Multiple Electrode Configuration Possibilities
  • Optional Foot Pedal Control

Application Ideas

  • Cross wires
  • Battery Tabs
  • Medical
  • Strap Welds
  • Strain gauges
  • Electronic components
  • Foil welds
  • Sheet Welds
  • R&D Work

Product Specifications

Tabletop Footprint (L x W x H) 14 x 5 x 24 in
Weight 22 lbs (10 kg)
Weld Force 1.8 to 29.2 lbs (8 to 130 N)
Max Electrode Stroke 2" (50 mm)
Electrode Diameter 1/8 in
Power Input 48 VDC @ 1.87 A
Max Throat Size (H x D) 9 x 10 in
Weld Cable Size/Length 0 AWG / 24 in
Foot Pedal Type Analog/Digital
Duty Cycle 100%
Electrode Speed Home to Hover Point: 3–20 mm/sec
Operating Temperature 0 to 65°
Positional Displacement Accuracy 60 µm
Actuation Method Automatic or Direct


Pro-S Users Guide
