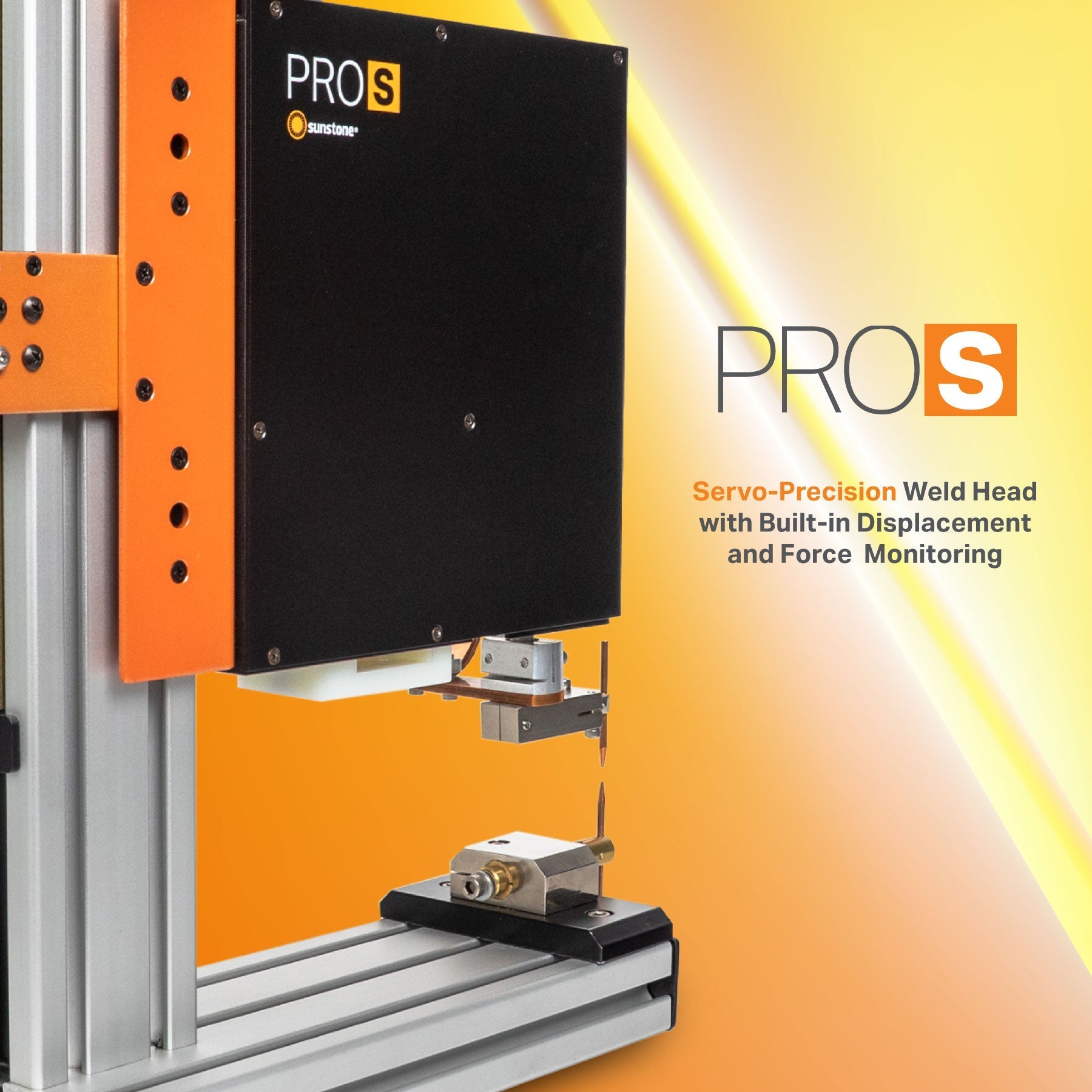

Meet the Pro-S: Servo-Powered Precision Weld Head with Built-in Displacement and Force Monitoring
The Sunstone Pro-S is a servo-driven resistance weld head designed to provide controlled, repeatable weld performance in production and development environments. The system incorporates a servo actuator with integrated force and displacement monitoring to enable closed-loop control of the weld process. These monitoring capabilities support verification of weld parameters and improved process control and consistency.
Precision Motion Control for Repeatable Weld Results
The servo drive architecture of the Pro-S provides precise control of electrode motion throughout the weld cycle, offering improved repeatability compared to pneumatic-powered weld heads. Positional displacement accuracy of up to 60 microns enables consistent electrode placement and controlled material deformation. This level of motion control supports tighter process tolerances and improved weld repeatability across high-volume production and critical applications.
Integrated Force Monitoring for Full Process Verification
The Pro-S provides adjustable weld force from 1.8 to 29.2 pounds (8 to 130 newtons), supporting a broad range of materials and joint geometries. Integrated force feedback, displacement feedback, and pull positional monitoring allow continuous measurement of key weld parameters. These data outputs can be used to validate weld consistency, detect process variation, and support quality assurance and process optimization initiatives.
Flexible Configuration for Diverse Applications
Configured in an opposed weld head arrangement, the Pro-S is suitable for both automated production systems and bench-top or laboratory use. The weld head provides a 2-inch (50 mm) stroke to accommodate varying part sizes and tooling configurations. A rotary knob height adjustment enables repeatable mechanical setup, while multiple electrode configuration options support application-specific tooling requirements.
Designed for Automation and Scalable Production
The Pro-S is designed for integration into automated welding systems, supporting consistent operation in high-production environments. System features and monitoring capabilities align with automated process control and data collection requirements. Optional foot pedal control is available for manual or semi-automated operation, providing flexibility across different manufacturing workflows.
Proven Performance Across Various Applications
The Pro-S is suitable for resistance welding applications including cross wires, battery tabs, strap welds, strain gauges, electronic components, foils, and sheet materials. Its precision motion control and integrated monitoring make it appropriate for medical device manufacturing and research and development applications where process validation, repeatability, and documentation are required.
Flexible Welder Compatibility
The Pro-S pairs nicely with several of Sunstone's capable welders, such as the CDDP-A, and the Aeon HF.
Chat with one of our micro welding consultants to see how the Pro-S can increase manufacturing efficiencies and improve quality consistency. Text or call +1 801-658-0015.
