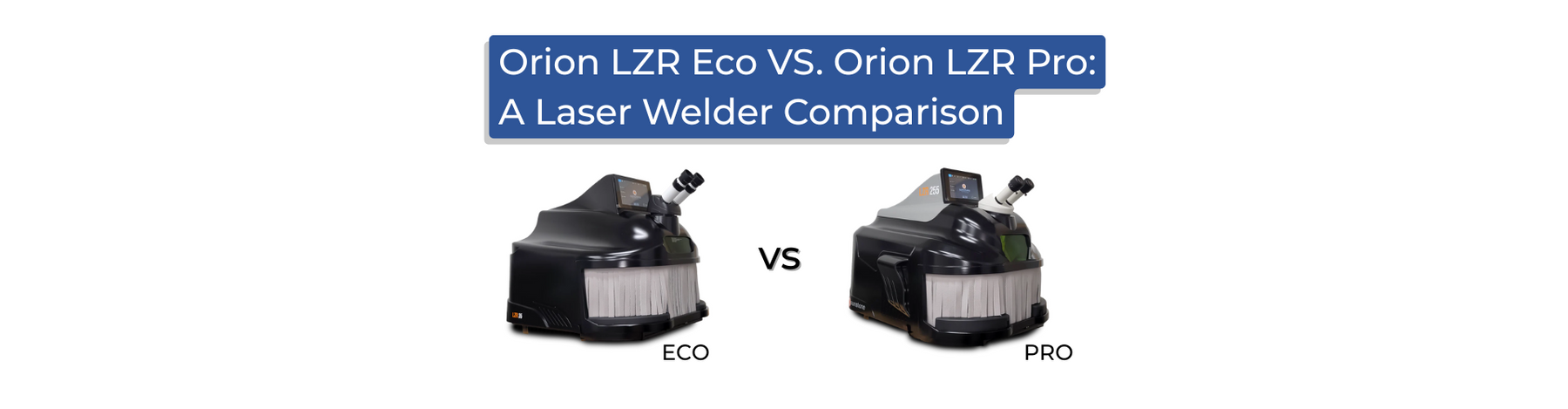

Benchtop Laser Welders Compared: Orion LZR ECO vs. Orion LZR PRO — Which is Right for You?
Learn more about and compare our top performing Orion LZR ECO and Orion LZR PRO benchtop laser welders to find out which one is best for you. You'll find information about the features, applications, and a quick comparison chart of these benchtop laser welders. Don't miss out on the video showcasing the LZR ECO. Find out which laser welding machine will work best for you.
What is a Benchtop Laser Welder?
A benchtop laser welder is a compact, precision welding machine that uses a concentrated laser beam to join metals without excessive heat. This technology is ideal when you need:
-
Minimal heat-affected zones
-
Pinpoint accuracy
-
Clean, oxidation-free welds
Common applications and use cases for our laser welders:
-
Jewelry making & repair
-
Dental and orthodontic appliance fabrication
-
Watch repair and customization
-
Electronics and micro-component assembly
-
Prototype and R&D projects
- Precision medical device manufacturing
Two of the most trusted options on the market are our Orion LZR ECO and Orion LZR PRO laser welders.

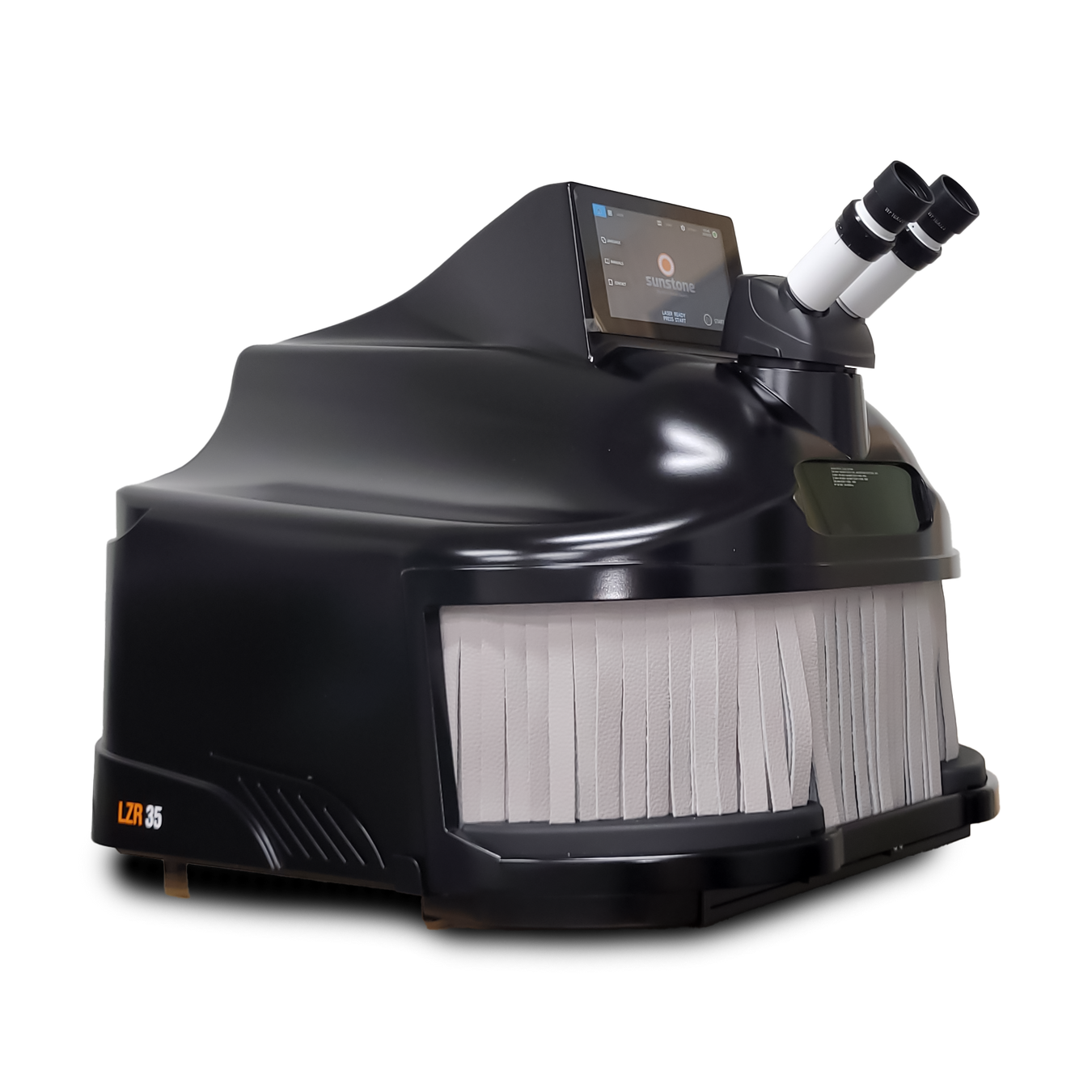

About the Orion LZR ECO Welder – Precision at a Budget Price
The Orion LZR ECO is the perfect entry point laser welder for professionals who need reliable precision without the premium price tag.
Key Features of this Welder:
-
Available in two models, the LZR 35 ECO (35 J) and LZR 165 ECO (165 J)
-
Motorized spot-size control (0.2–2.0 mm) via touchscreen for repeatable accuracy
-
Independent control over power and pulse duration, beyond preset limits
-
Weld speed: Up to 6 shots per second on the LZR 35 ECO and up to 20 shots per second on the LZR 165 ECO—twice the speed of many competitors
-
Standard argon gas hookup for cleaner welds and protecting weld quality
-
7″ touchscreen interface with advanced presets and cooling system
- Easy DIY maintenance needs unlike many of our competitors
Ideal Applications:
Jewelry shops, watch repair specialists, dental and orthodontic labs, small-scale prototyping, medical device manufacturing, aerospace, metal micro-welding, and custom metal artisans looking for a cost-effective, accurate welding solution.
Watch the Orion LZR ECO 160 Benchtop Laser Welder in Action (This video is of one of our 2024 LZR ECO models)
See how the ECO delivers fast, accurate welding with user-friendly controls.

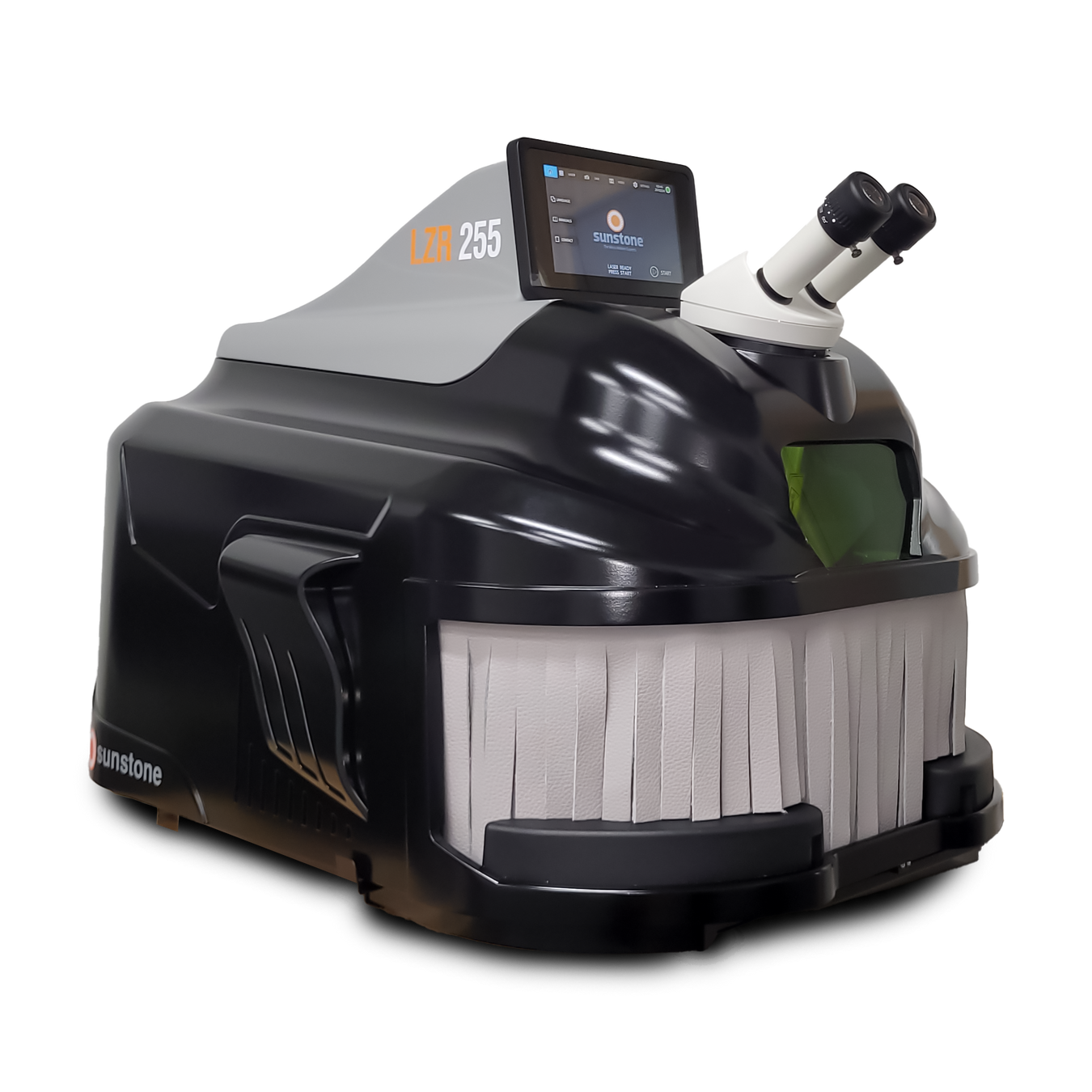

The Orion LZR PRO Laser Welder – Performance for Professionals
The Orion LZR PRO is built for speed, accuracy, wider power range, and high-volume production.
Features of the LZR PRO:
-
Wide power range of up to 255 Joules
-
Welding speed of up to 40 welds per second with Gaussian Smooth Spot technology!
-

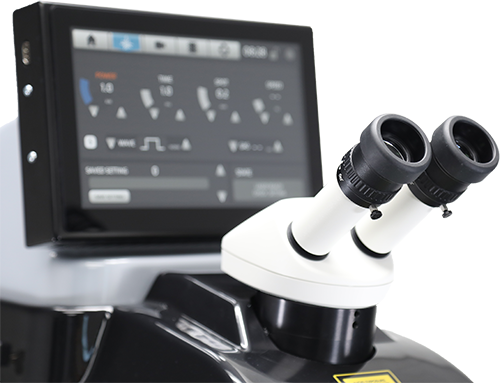

Large, high-resolution touchscreen display with joystick control inside the welding chamber
-
Integrated HD camera and HDMI output
-
Ultra-clear 10x Leica optics, plus argon hookups
-
Long-life durable flashlamp (tens of millions of shots), dual fans, and a chamber with arm rests for the ability to work on large workpieces
-
Energy-efficient laser optic rail and cool-running LED-lit chamber for longer machine life
-
Low cost DIY maintenance due to resin sack filtration technology
-
3 Year Warranty
Ideal Applications:
High-volume jewelry manufacturers, dental and ortho production facilities, medical device manufacturing, aerospace, electronics, R&D labs, and any operation requiring fast, repetitive, repeatable results.
Orion LZR ECO vs. Orion LZR PRO: Quick Comparison
| Feature | Orion LZR ECO | Orion LZR PRO |
|---|---|---|
| Power Options | 35 J / 165 J | Up to 255 J |
| Spot Size Adjustment | 0.2–2.0 mm touchscreen-controlled | 0.1–2.0 mm, plus joystick and HD camera (0.1 mm available as an upgrade only) |
| Interface | 7″ touchscreen | 7” touchscreen + joystick + HDMI output |
| Speed | Up to 6 welds/sec | Up to 40 welds/sec and suited for high volume |
| Cooling & Design | Efficient cooling, basic ergonomics | Advanced cooling, ergonomic design with arm rests |
| Warranty & Build Quality | Reliable, budget-friendly | Long-lasting, production-grade |
Get a custom quote for an Orion LZR Laser Welding System
Frequently Asked Questions about the Orion Laser Welders
Q: Which laser welder is best for jewelry repair?
For small to medium shops, the Orion LZR ECO 165 provides all the precision needed at a lower investment. For high-volume operations, the LZR PRO is unmatched in speed and consistency.
Q: Can I weld all metals with these machines?
Both models handle gold, silver, platinum, titanium, and many stainless alloys. Aluminum welding depends on the specific alloy and thickness.
Q: How much does an Orion laser welder cost?
Pricing varies by model and configuration. Contact us for a tailored quote based on your needs.
Which Model Should You Choose?
-
Choose the LZR ECO if you want affordable, precise laser welding for small to medium workloads.
-
Choose the LZR PRO if you need advanced features, ultra-fast welding speeds, and scalability for production.
