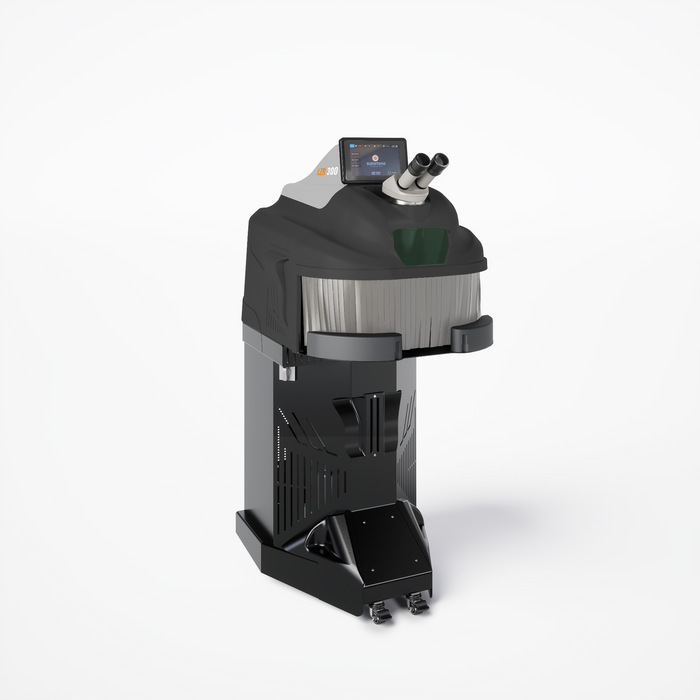

The Orion® LZR 300 Pro Max

The Orion® LZR 300 Pro Max

The LZR 300 Pro Max is a high-performance laser welding system engineered for demanding, production-level environments where precision and consistency are critical.

Built for intensive use, it features a dual flash lamp, single-rod laser design that delivers high peak power with stable, repeatable energy output for consistent weld penetration—even at high frequencies. Its advanced energy distribution ensures clean, uniform welds, while an integrated cooling system supports continuous operation with minimal downtime. With a spacious welding chamber and intuitive touchscreen controls, the LZR 300 Pro Max provides the flexibility, control, and reliability required for high-volume industrial and precision manufacturing applications.

Common applications include:

- Precision metal welding

- Thin material welding

- High-volume production welding

- Fine feature and detail welding

- Applications requiring minimal heat distortion

Built for High-Volume Production

The LZR 300 Pro Max is designed to operate continuously in demanding environments.

- Engineered for 24/7 operation

- High average power for sustained output

- Stable performance even at high pulse frequencies

Consistent Energy. Consistent Results.

The LZR 300 Pro Max utilizes advanced pulse shaping technologies to ensure:

- Even energy distribution across the weld

- Reduced variability between welds

- Cleaner, more controlled weld results

High Power with Precision Control

- Peak power up to 15 kW

- Energy up to 300 J

- Adjustable pulse durations for process tuning

Designed for Stability at Speed

- Stable shots even at high frequencies

- Consistent output across rapid weld cycles

- Reliable operation in high-speed environments

Advanced User Interface and Control

- 7” color touchscreen interface

- Pulse shaping programs

- Stored weld settings

Flexible Process Control

- Adjustable impulse time (0.1–20 ms)

- Spot diameter from 0.2–2.0 mm

System Capabilities

- Nd:YAG 1064 nm laser

- Average power: 150 W

- Pulse frequency: 0.5–50 Hz

- 100 stored programs

- 230V AC power

Built as a Complete System

- Integrated cooling system

- Standalone pedestal design

- Spacious welding chamber

- Argon shielding support

Why Choose the LZR 300 Pro Max?

- Stable performance at high output

- High power with precision control

- Built for continuous operation

- Complete integrated system

Support That Ensures Success

- Application engineering support

- Process development guidance

- Training and setup assistance

Take Control of Your Laser Welding Process

See the Technical Specifications:
