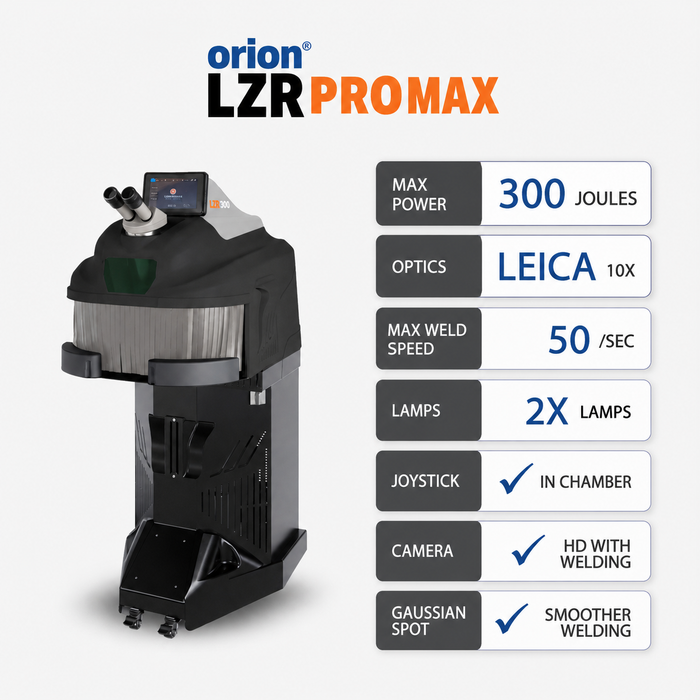

Orion® LZR 300 Pro Max

Stable, High-Energy Laser Welding for Consistent Production Results

The LZR 300 Pro Max delivers precise, repeatable laser welding with the stability required for real production environments.

Designed for applications where consistency matters, it provides controlled energy delivery, minimal thermal distortion, and reliable performance, even at higher throughput.

• Consistent pulse-to-pulse energy delivery
• Minimal heat-affected zone for precision work
• Built for continuous, production-level operation

What Is the LZR 300 Pro Max?

The LZR 300 Pro Max is a production-grade laser welding machine designed for high-precision, high-volume welding applications where consistency, stability, and repeatability are critical.

Unlike laser systems that prioritize portability or peak power alone, the LZR 300 Pro Max is engineered to maintain controlled energy delivery and consistent weld performance over long production runs. This makes it well suited for applications requiring repeatable results across batches and extended operation.

Why Laser Welding and Why It Often Fails

Laser welding is widely chosen for its precision, low heat input, and ability to produce clean, controlled welds. However, in real production environments, the challenge is not simply generating power. It is maintaining consistency over time.

Many laser systems struggle when moving beyond controlled demonstrations into real-world use. Common issues include variability between pulses, instability at higher frequencies, inconsistent weld results across batches, and heat buildup during extended operation. These challenges lead to unpredictable weld quality and increased process variation.

What Makes the LZR 300 Pro Max Different?

Designed for Stable Energy Delivery:

The LZR 300 Pro Max is engineered around consistent pulse output and stable energy delivery across every weld. This ensures repeatable weld formation, even over long production runs, resulting in reliable penetration, reduced variability, and consistent results from the first weld to the last.

Consistency at Production Speeds:

Many laser systems perform well in controlled environments but lose stability as throughput increases. The LZR 300 Pro Max is built to maintain stable output at higher pulse frequencies, delivering consistent weld quality across rapid cycles and reliable performance in demanding production settings.

The LZR 300 Pro Max is a production-grade laser welding machine designed for applications where consistency, precision, and throughput are critical.

Controlled Energy, Not Just High Power:

High peak power alone does not guarantee weld quality. The LZR 300 Pro Max combines up to 15 kW peak power with controlled pulse shaping and adjustable energy delivery. This allows operators to precisely control penetration, adapt to different materials, and maintain repeatable results across varying applications.

Common Applications for the LZR 300 Pro Max

The LZR 300 Pro Max is used in applications where precision, repeatability, and minimal heat distortion are required.

• Precision metal welding
• Thin material welding
• High-volume production welding
• Fine feature and detail welding
• Applications requiring minimal heat distortion

Precision Without Thermal Damage

Laser welding provides a significant advantage over traditional welding methods by delivering highly localized energy input. This minimizes heat transfer to surrounding material, reducing distortion, internal stress, and the risk of damage to sensitive components.

This makes the process especially effective for thin materials, precision components, and assemblies where heat control is critical. It is commonly applied in industries such as medical device manufacturing, electronics, tooling, and precision fabrication.

Built for Real Production Environments

Unlike systems designed for light-duty or intermittent use, the LZR 300 Pro Max is engineered for continuous operation in high-demand environments.

Its integrated cooling system supports stable thermal performance during long production runs, while the system design enables reliable operation across high-duty-cycle applications. This allows manufacturers to maintain consistent output without sacrificing uptime or process stability.

Process Control and Flexibility

The LZR 300 Pro Max provides practical, application-focused control over the welding process without unnecessary complexity.

Pulse Shaping Control

• Adjustable pulse duration from 0.1–20 ms
• Multiple pulse profiles
• Fine-tuned energy delivery

Spot Size Control

• Adjustable spot diameter from 0.2–2.0 mm
• Motorized precision adjustment

These capabilities allow operators to tailor the welding process to specific materials, geometries, and performance requirements while maintaining repeatability.

Advanced Interface and Usability

Many laser systems introduce complexity that slows down setup and operation. The LZR 300 Pro Max is designed for usability and efficiency, allowing operators to quickly establish and repeat successful weld parameters.

• 7” touchscreen interface
• Stored weld programs
• Simple parameter adjustment

This reduces setup time and helps ensure consistent results across operators and production runs.

Comparable Performance Without the Barriers

Many high-performance laser welding systems come with tradeoffs such as high upfront cost, long lead times, and complex implementation. The LZR 300 Pro Max is designed to deliver competitive weld quality with faster deployment timelines and a more accessible investment profile, without compromising performance where it matters.

Technical Specifications

What Problems Does It Solve?

The LZR 300 Pro Max addresses common production challenges including inconsistent weld energy, instability at higher speeds, heat-related distortion, and variability across production runs, helping manufacturers maintain reliable, repeatable weld performance.

Why Choose the LZR 300 Pro Max?

Consistent Results You Can Trust:

Stable energy delivery ensures repeatable weld quality across every cycle.

Built for Production:

Designed for continuous operation and high-throughput environments.

Controlled, Not Just Powerful:

Precision energy delivery enables better weld control, not just higher output.

Accessible Without Compromise:

Achieve high-performance laser welding without unnecessary cost or complexity.

Support That Ensures Success

• Application engineering support
• Process development guidance
• Training and setup assistance
• Weld validation

Frequently Asked Questions About Laser Welding Machines

What is a laser welding machine used for?

Laser welding machines are used to join metal components using highly concentrated energy, allowing for precise, clean welds with minimal heat distortion. Production-grade systems are typically used in applications where consistency, repeatability, and control are critical.

What’s the difference between a handheld laser welder and an industrial laser welding machine?

Handheld laser welders are designed for flexibility and portability, making them suitable for lighter-duty or manual applications.

Industrial laser welding machines, like the LZR 300 Pro Max, are designed for stability, repeatability, and production throughput. They provide controlled energy delivery and consistent weld quality over long runs, making them better suited for demanding manufacturing environments.

Is laser welding right for my application?

Laser welding is ideal when you need precise, localized energy, minimal heat distortion, and consistent, repeatable welds.

If you are unsure whether laser welding is the right fit, our team can evaluate your application and recommend the best process.

Not Sure If Laser Welding Is Right for You?

Laser welding is ideal when you need precise, localized energy, minimal heat distortion, and consistent, repeatable welds.

This is especially important when evaluating the differences between handheld laser welders and production laser welding machines. While handheld systems prioritize flexibility and portability, production systems like the LZR 300 Pro Max are designed for stability, repeatability, and long-run performance.

If you are unsure which approach fits your application, our team can help evaluate your requirements and recommend the best solution.
