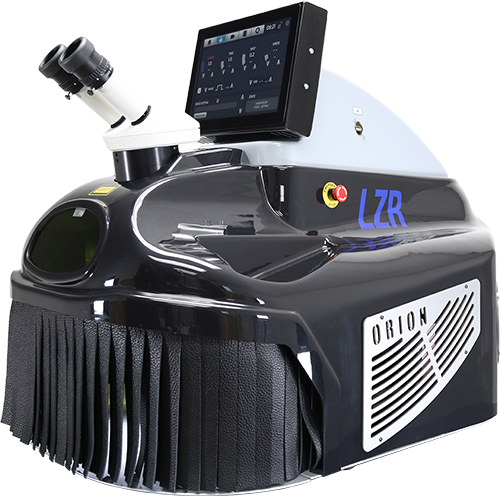

The Orion LZR: More Premium Features without the Cost!

An Orion laser micro welder from Sunstone lets you accomplish extraordinary welds in the most difficult of places. With a laser, if you can see where a weld needs to be, you can reach it. You will appreciate the ability to use the laser to smooth and polish a work area or fill porosity in half the time. With a laser, theres no electrode maintenance to interrupt your work, which saves time. Sunstone offers four different power options to fit your budget so that your studio or factory can easily justify an Orion laser micro welder.

Sunstones Orion Benchtop Laser Welder Features

• Large touchscreen interface
  • Slider bars for making quick adjustments
• Joystick control inside the weld chamber
• Built-in HD camera
• HDMI output for displaying camera feed on a TV

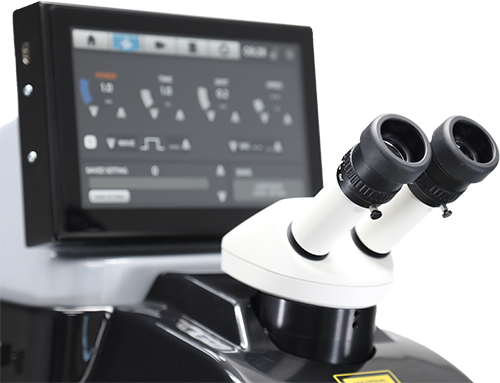

• Leica 10x Optics
• 3 year warranty
• Argon hookups for shielding gas
• Compressed air hookups with nozzle inside weld chamber for cooling off welded pieces
• Water cooling system uses a resin sack instead of a water filter
  • Less maintenance as the resin sack can go years without needing to be replaced
• Flashlamp is rated at +/- 5 million shots
• Dual fans and radiators for better cooling

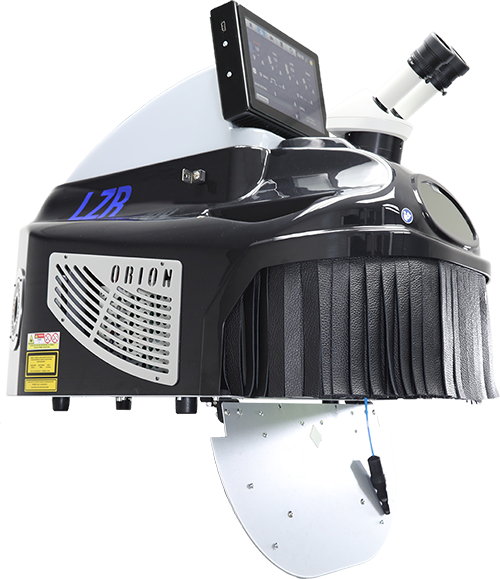

• Open-bottom weld chamber- the bottom of the chamber can be dropped out of position to accommodate large or heavy items
• 180 degree open weld chamber- you can feed pieces in one side and out the other

More Efficient Laser Optic Rail

Our more efficient laser optic rail delivers more energy into the weld resulting in less energy being lost lost internally through heat dissipation. Because of this efficiency, an Orion laser micro welder from Sunstone gets more joules of energy using less kilowatts of peak weld energy. This efficiency also increases the life of the Orion laser welders flash lamp and overall life of the laser.

Orion Laser Welders Run Cooler

Two ventilation fans keep the Orion laser welders running cooler. Additionally, the weld chamber is lit up with LED lights rather than halogen. This makes the weld chamber significantly cooler. Less heat equals less strain on the system which makes it even more efficient!

Simple to Use Benchtop Laser Welder

At Sunstone, we create products to make your life simple. The LZR benchtop laser welders are no exception. As a result, our laser welders are built with the end user in mind. We provide a full touchscreen interface that allows you to easily adjust settings from minimum to maximum in a single touch.

Sunstones Orion Benchtop Laser Welder Applications

• Weld precious and non-precious metals
• Add Metal
• Small wires
• Bond dissimilar metal
• Weld porosity or cracks using filler material
• Repair watches, eye-wear and other minutia
• Weld dental & orthodontic appliances
• Repair antique jewelry
• Repair jewelry settings without removing stones

Sunstones Orion Benchtop Laser Welder in Action
